ASH 500 Scent Diffuser Machine | Up to 1,200 m² Coverage | 500 ml Capacity
Regular price
Dhs. 1,575.00
(Inc. VAT)
Scentivo ASH series · Model A-H333M
Scent lobbies, showrooms and restaurants up to 1,200 m²
ASH 500 is the mid-size member of the Scentivo ASH series, with a 500 ml oil bottle, real-time oil level monitoring and a rapid aroma burst when a space needs a quick lift.
Made for: Hotel and building lobbies, showrooms, restaurants, gyms and open-plan offices.
1,200 m²coverage (3,600 m³)
500 mloil bottle
0.31–6.2 g/hoil consumption
8 Wpower, DC 12 V

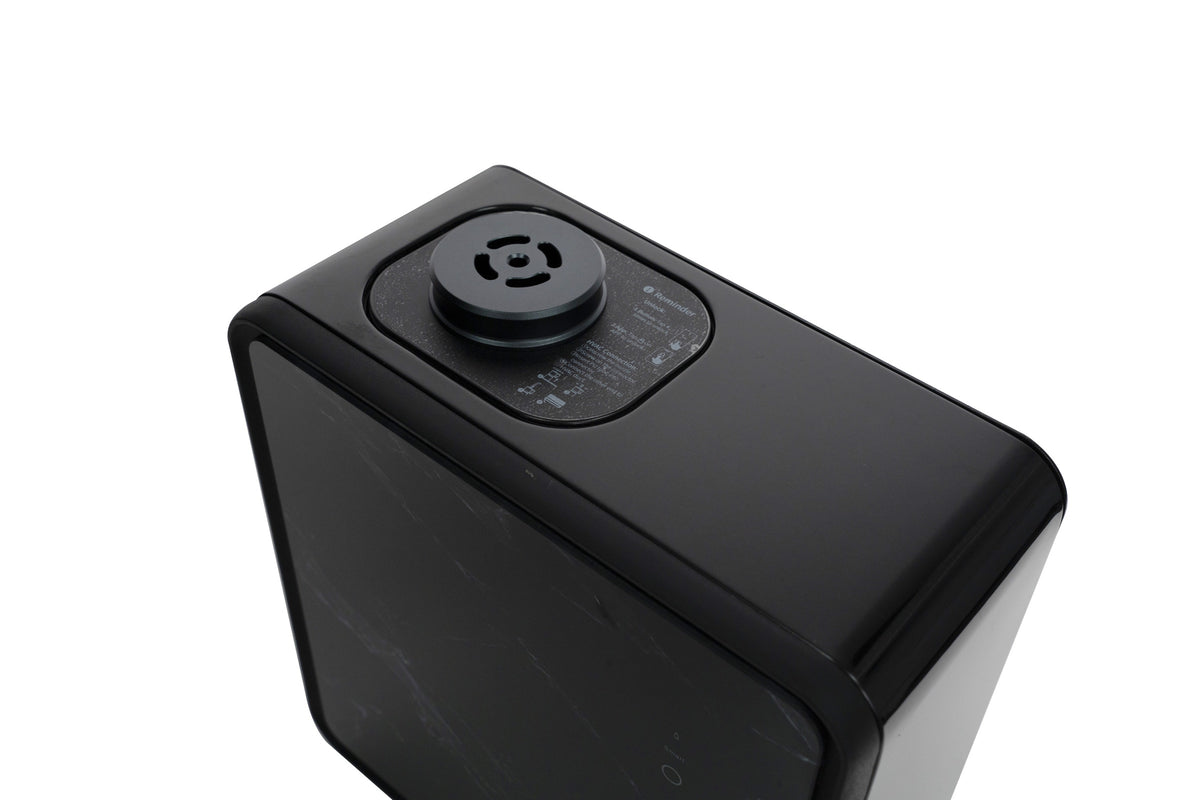

Design
Black marble-effect glass, stainless steel

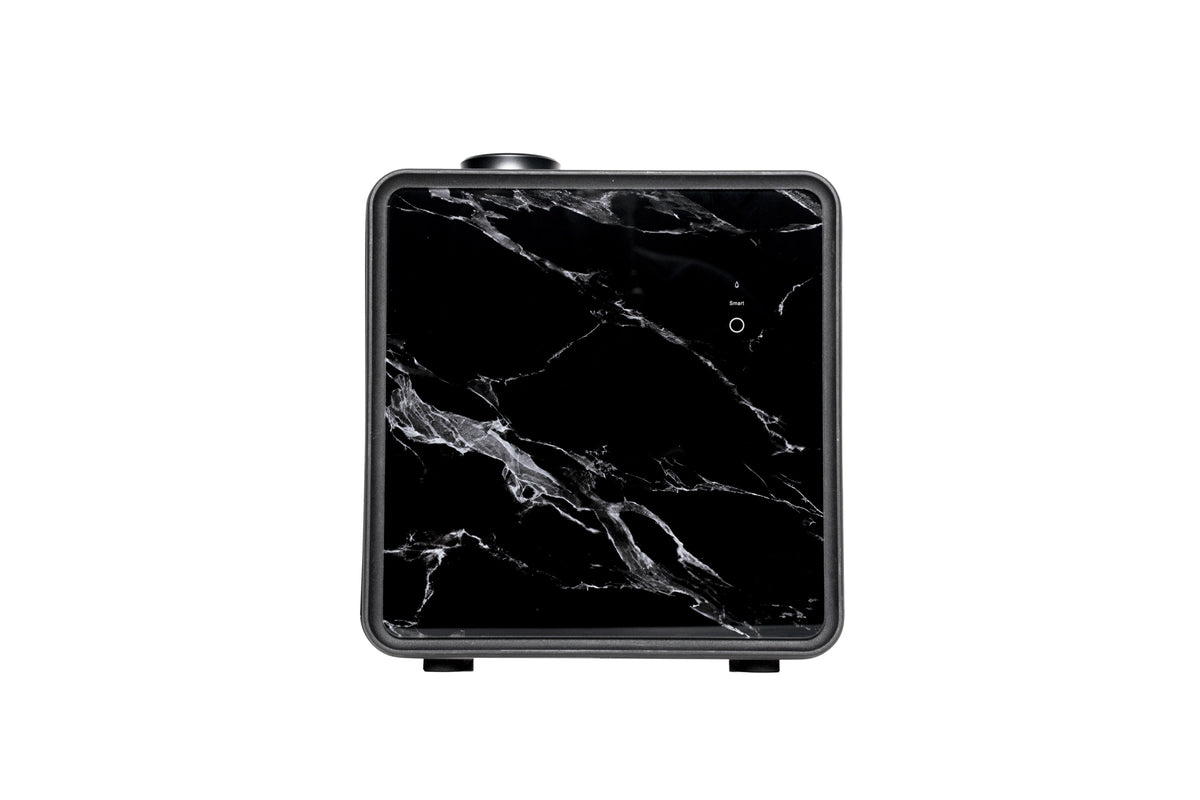

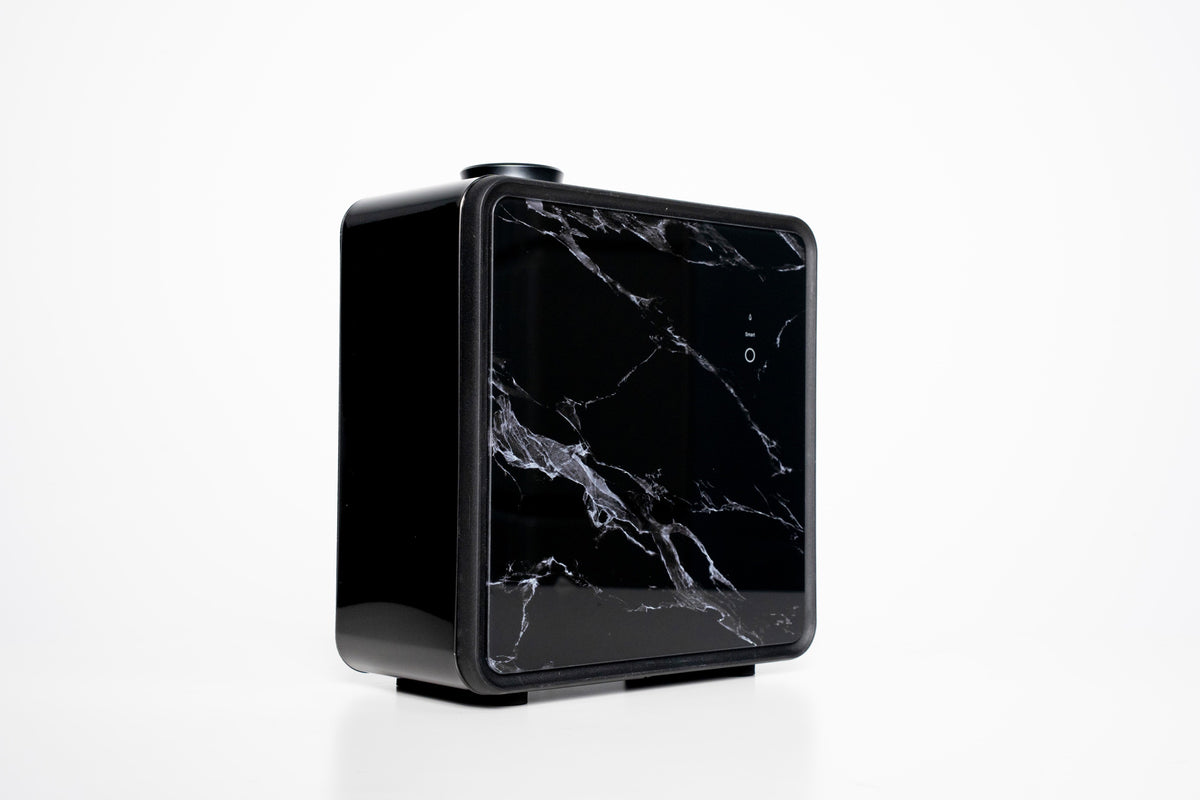

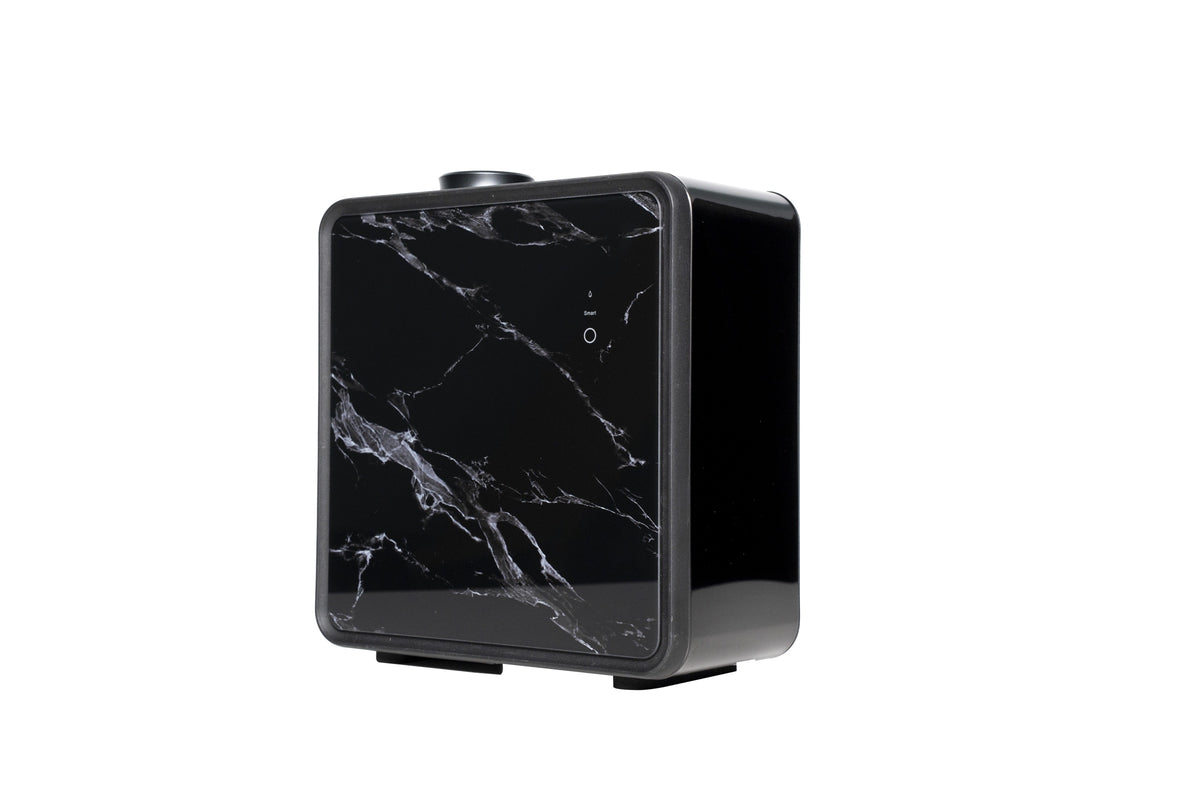

The front is black glass with a white marble pattern, framed in stainless steel. It looks at home on a reception desk, a shelf or a wall.
220 × 243 × 111 mm · 2.4 kg
Controls
Simple touch controls on the glass
- Real-time oil level monitoring – See how much oil is left before it runs out.
- Quick customisation – Adjust the scent programme to suit the space.
Diffusion
Fine mist from the top outlet
- Rapid aroma burst – Lift the scent quickly when a space needs it.
- IoT management platform (optional) – Manage the diffuser through an IoT platform where this option is chosen.
Refill

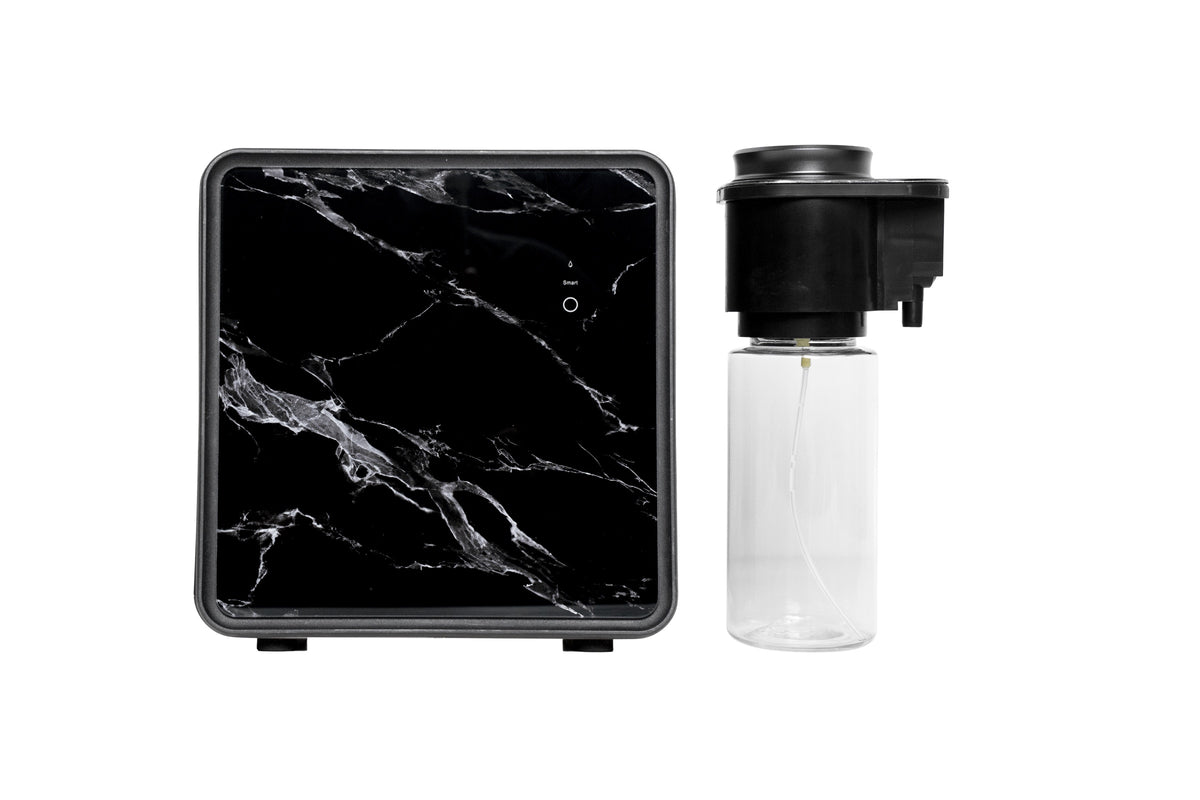

A 500 ml bottle that's easy to refill
- Press the unlock button 4 times quickly.
- Lift the atomising head.
- Add fragrance oil and tighten the bottle.
Shown step by step in the app setup video below.
Shop aroma diffuser oils
Installation
Three ways to place it
Free-standing
Stand it on a counter, shelf or cabinet.
Wall-mounted
Fix the bracket to the wall, attach the studs to the back of the machine and hang it on the bracket.
HVAC connection
Screw the quick connector into the atomising head and run the PU tube into the air-conditioning system.
Video guide
Wall mounting and HVAC connection
- Place the bracket on the wall and mark the holes.
- Drill the holes and insert the anchors.
- Screw the bracket to the wall.

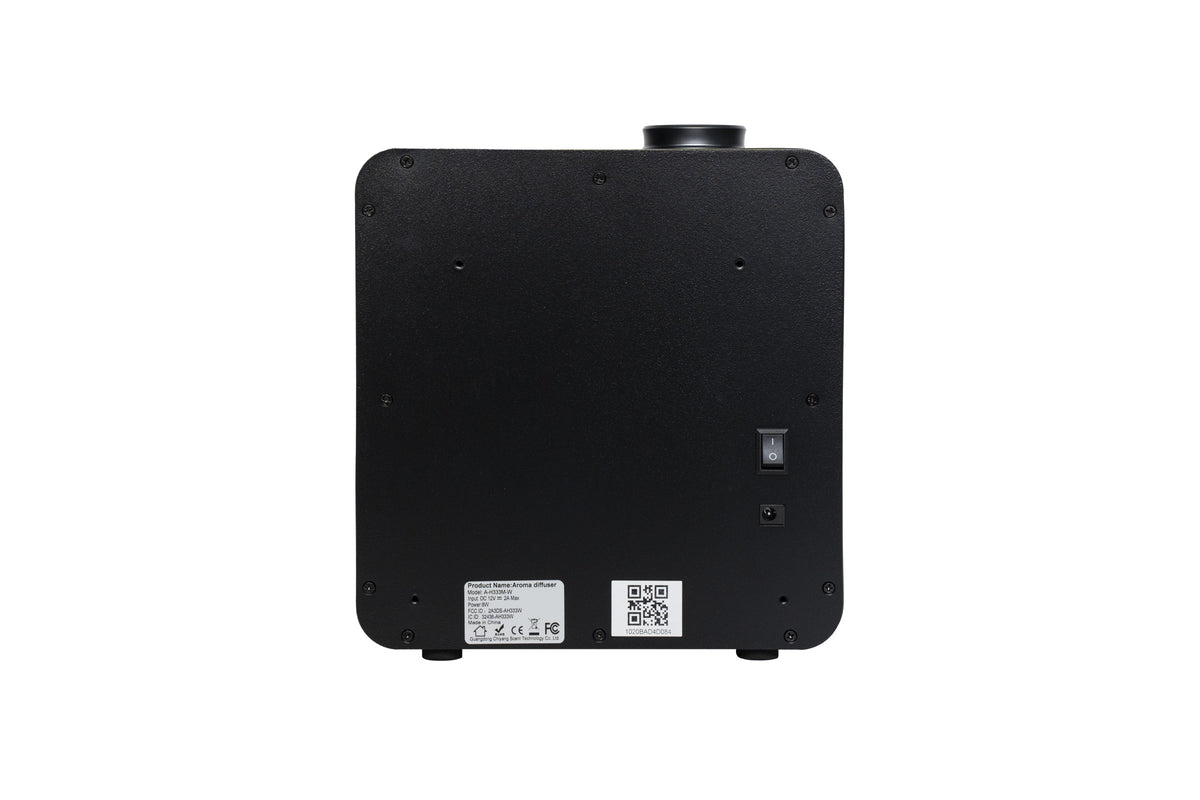

- Attach the mounting studs to the back of the machine.
- Hang the machine on the bracket.
- For HVAC: fit the quick connector and insert the PU tube.
App control
Set it up and run it from your phone
- Bluetooth or Wi-Fi – the video covers both device versions.
- Working periods – choose when the diffuser runs.
- 24-hour mode – one of the intelligent switch modes in the app.
- Factory reset – hold for 10 seconds to restore factory settings.
- IoT management platform – available as an option on this model.
Choose your size
The ASH series side by side
| ASH 200 | ASH 500 | ASH 1000 | |
|---|---|---|---|
| Coverage | 500 m² / 1,500 m³ | 1,200 m² / 3,600 m³ | 1,700 m² / 5,100 m³ |
| Oil bottle | 200 ml | 500 ml | 1,000 ml |
| Oil consumption | 0.13–2.5 g/h | 0.31–6.2 g/h | 0.4–8 g/h |
| Power | 5.1 W | 8 W | 10.6 W |
| Size | 167 × 188 × 86 mm | 220 × 243 × 111 mm | 259 × 292 × 119 mm |
| Weight | 1.4 kg | 2.4 kg | 3.4 kg |
| Price (incl. 5% VAT) | AED 838.95 | AED 1,575 | AED 1,890 |
Specifications

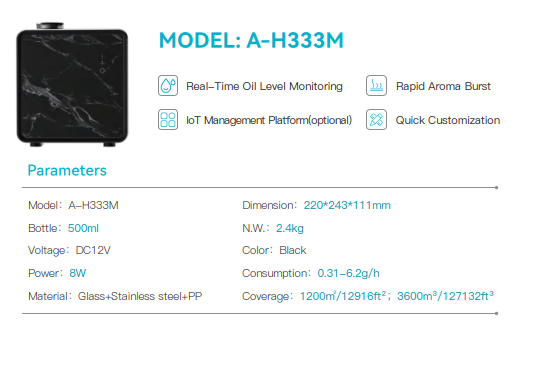

ASH 500 technical details
| Model | A-H333M |
|---|---|
| Oil bottle | 500 ml |
| Coverage | Up to 1,200 m² (12,916 ft²) / 3,600 m³ |
| Oil consumption | 0.31–6.2 g/h |
| Power | 8 W |
| Voltage | DC 12 V |
| Dimensions | 220 × 243 × 111 mm |
| Net weight | 2.4 kg |
| Material | Glass, stainless steel, PP |
| Colour | Black |
FAQ
Questions about the ASH 500
How big a space can the ASH 500 scent?
Up to 1,200 m² (12,916 ft²), or 3,600 m³ of volume, according to the manufacturer's specification.
Can I mount it on the wall or connect it to the air conditioning?
Yes. The video on this page shows the wall-bracket installation and the HVAC connection with the quick connector and PU tube. It can also stand on a counter or shelf.
Can I control it from my phone?
The app setup video shows pairing over Bluetooth or Wi-Fi, setting working periods and the 24-hour mode. On this model the IoT management platform is optional.
How do I refill it?
Press the unlock button 4 times quickly, lift the atomising head, add fragrance oil and tighten the bottle.
Is VAT included in the price?
Yes. The price shown includes 5% VAT. Before VAT the ASH 500 is AED 1,500.
Prices include 5% VAT. Shop aroma diffuser oils.
